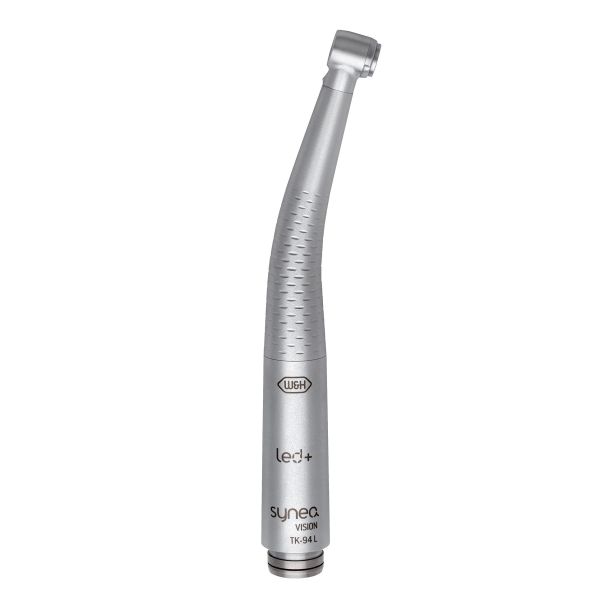

TK-94 L Synea Vision turbine
LED+, ceramic ball bearings,
coupling system Roto Quick
LED+,
5x spray,
Head size Ø 9 mm,
14 W*, 410,000 rpm,
FG burs Ø 1.6 mm for bur lengths up to 16 mm
The new range of Synea Vision turbine handpieces
Discover the Synea Vision line – the turbine range for all treatment scenarios!
Your advantages at a glance
100% shadowless illumination of the
treatment site with the Ring LED+
(with the Roto Quick system only)
Optimal power
Optimum cooling of the treatment site
with 5x spray
Four head sizes for every application case
Hygienic head system
Scratch-resistant surface improves aesthetics even more – and extends their life
Fatigue-free work
Optimum service life and unexpected quietness during operation with ceramic ball bearings
Thermo washer disinfectable and sterilizable
24 months warranty
Description
TK-94 L Synea Vision turbine. 24 months warranty
Specifications
Synea Vision
Types:TK-94 L / TK-94 LM TK-97 L / TK-97 LMTK-98 L / TK-98 LMTK-100 L / TK-100 LM
Light:LED + /
compact glass rodRing LED + /
compact glass rodRing LED + /
compact glass rodRing LED + /
compact glass rod
Coupling:W&H Roto Quick /
Multiflex®**W&H Roto Quick /
Multiflex®**W&H Roto Quick /
Multiflex®**W&H Roto Quick /
Multiflex®**
Head size:Ø 9 mmØ 10 mmØ 11.5 mmØ 13 mm
Head height:17.2 mm
(with bur 16 mm)21.1
(with bur 19 mm)21.4
(with bur 19 mm)21.4
(with bur 19 mm)
Power:14 W*21 W*24 W*26 W*
Speed:410,000 rpm400,000 rpm360,000 rpm330,000 rpm
FG bur Ø 1.6
Max. operating part diameter:
Max. length:
1.5 mm
16 mm
2 mm
21 mm
2 mm
25 mm
2.5 mm
25 mm
Operating pressure Roto Quick connection:
Operating pressure Multiflex®** connection:3 ± 0.3 bar
2.5 – 4 bar3 ± 0.3 bar
2.5 – 4 bar3 ± 0.3 bar
2.5 – 4 bar3 ± 0.3 bar
2.5 – 4 bar
Spray:5-fold5-fold5-fold5-fold
